PUR hot melt adhesive is called moisture curing reactive polyurethane hot melt adhesive. Its adhesiveness and toughness (elasticity) are adjustable, and it has excellent bonding strength, temperature resistance, chemical corrosion resistance and aging resistance. Can pass GB/T 18583-2008, ROHS, REACH, phthalate 17P, etc.

Application : Edge banding of solid wood, thin wood, melamine, polyester, HPL, PVC, ABS, PP and other materials with density board, multi-layer board, solid wood board, wood plastic board and other materials.
The surface of the material must be clean and free of grease, dust or other debris. Apply glue evenly to the surface of the base material (skin coating or board coating is acceptable)
Do not come into contact with water or water vapor before and during use to prevent bubbles from forming in the film and reducing its strength.
The operating temperature is 15-30℃. When used in winter, the glue environment needs to be appropriately heated, preferably above 20°C.

Additional information

Color

Transparent, white

Gluing method

Machine gluing, Manual gluing

Product Details:

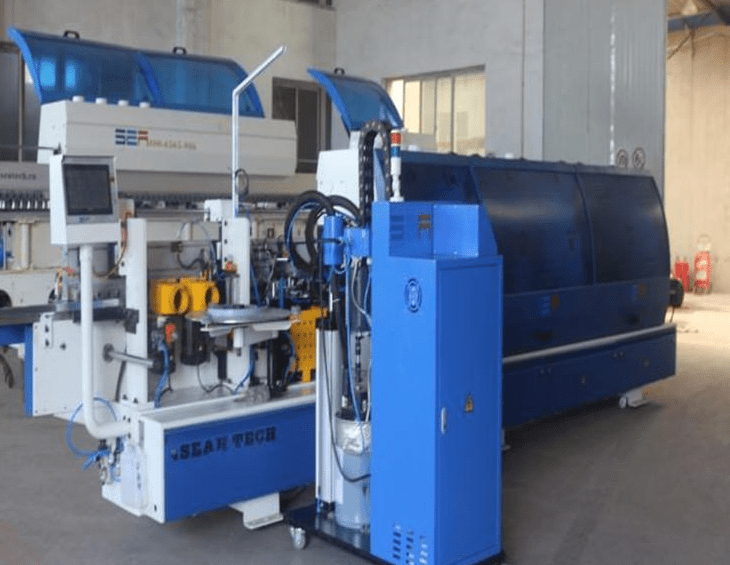

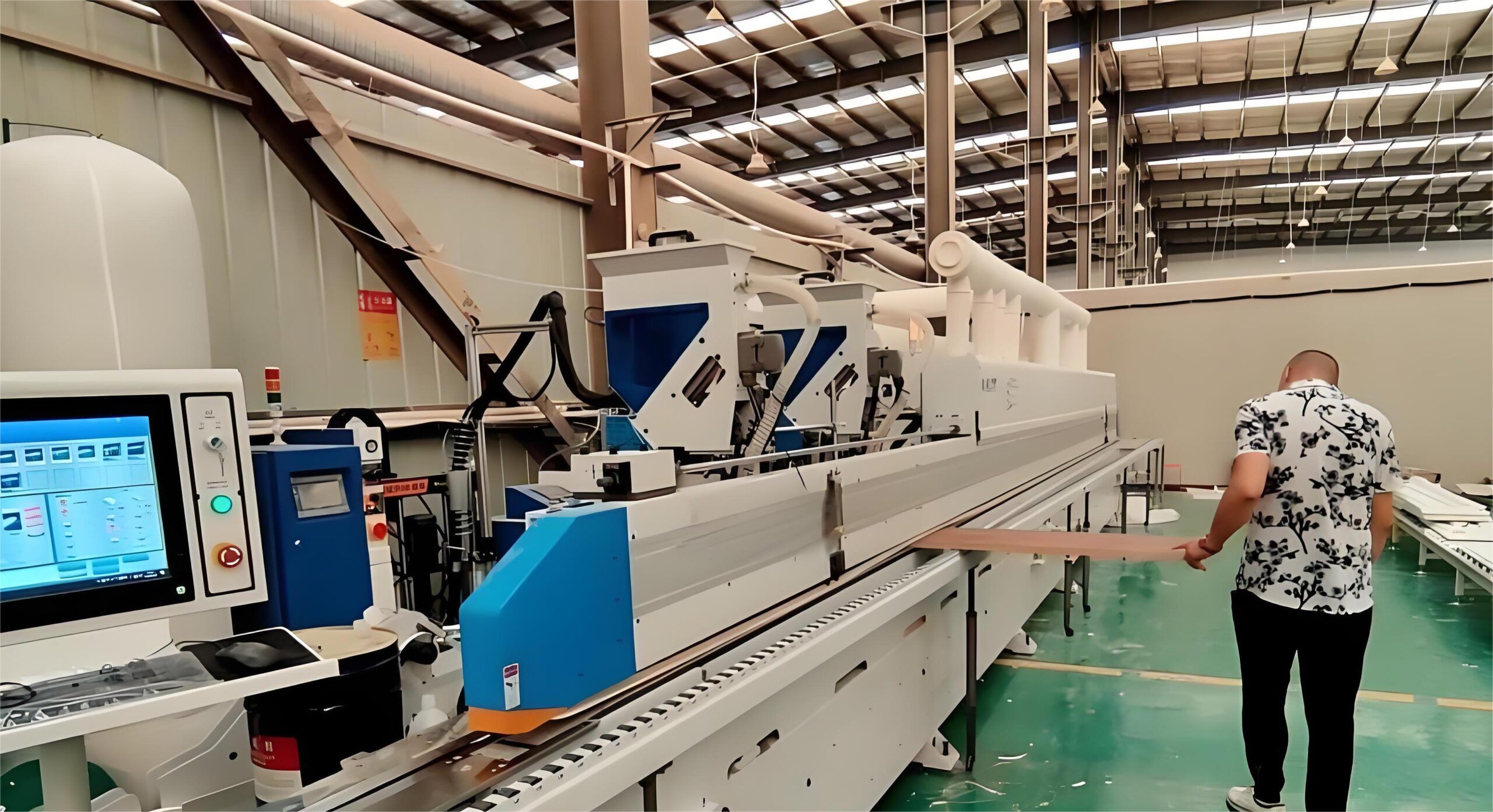

Pictures of on-site application of PUR hot melt adhesive for edge banding

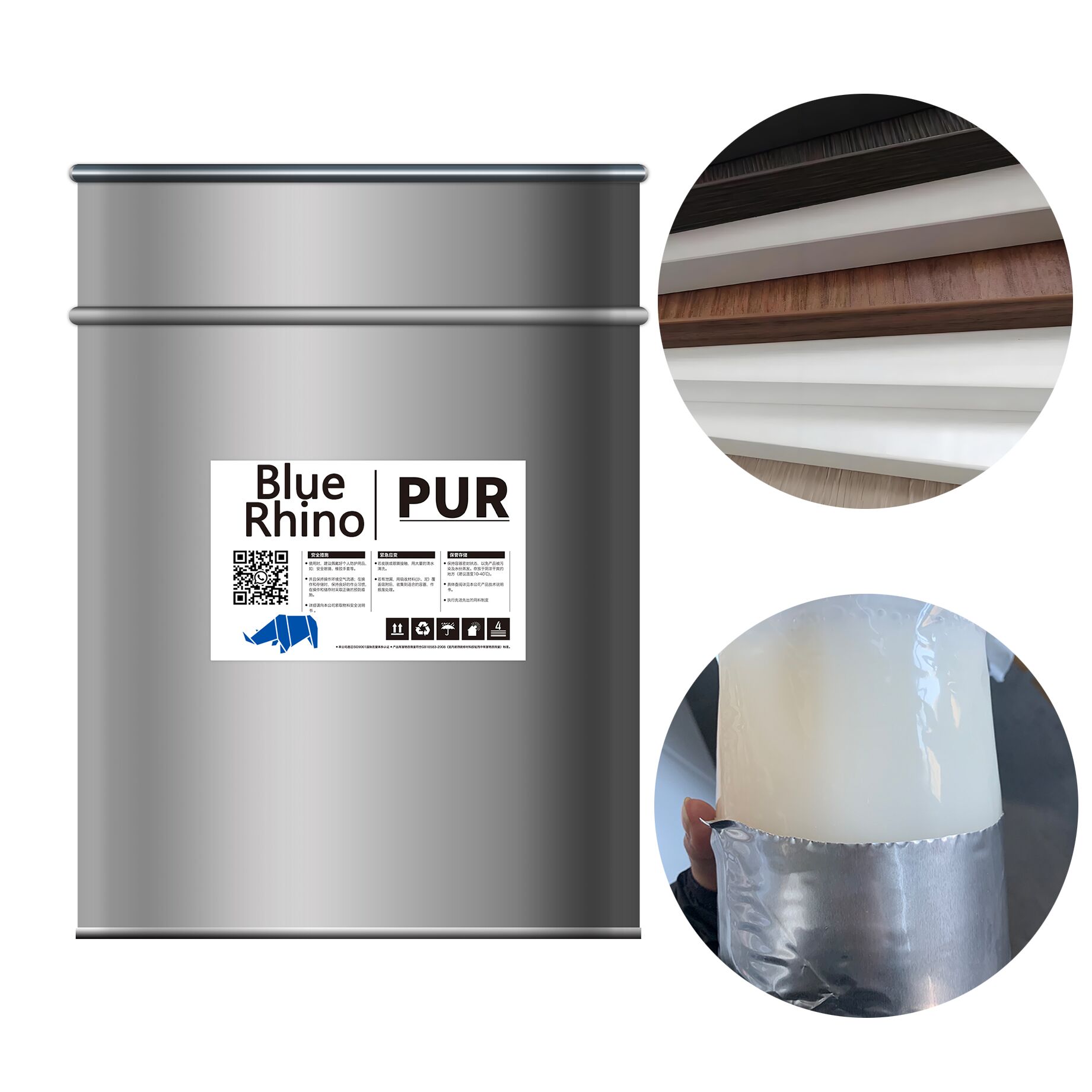

pur hot melt adhesive for edge banding



High initial adhesion, high and low temperature resistance, solvent resistance

Fast gluing speed and rapid prototyping, suitable for most production processes.

High bonding strength, 48-72 hours glue tank no cleaning required

It is used in most furniture production materials and has passed hot and cold cycle tests and water and heat resistance tests.




How to use PUR edge banding hot melt adhesive

  1. Confirm the boards and edge bands to be bonded(bonded boards, edge banding materials, machine edge banding speed, glue melting temperature and final strength, etc.), and ask the glue supplier to provide suitable PUR edge banding hot melt glue.
  2. Clean the glue coating equipment, open the temperature control panel, and heat the glue.
  3. Open the equipment control panel, set the edge banding speed, glue coating amount, trimming and other parameters.
  4. After the board is sealed, observe the effect; if there is no problem, it is recommended to leave it for 24 hours before proceeding to the next process.

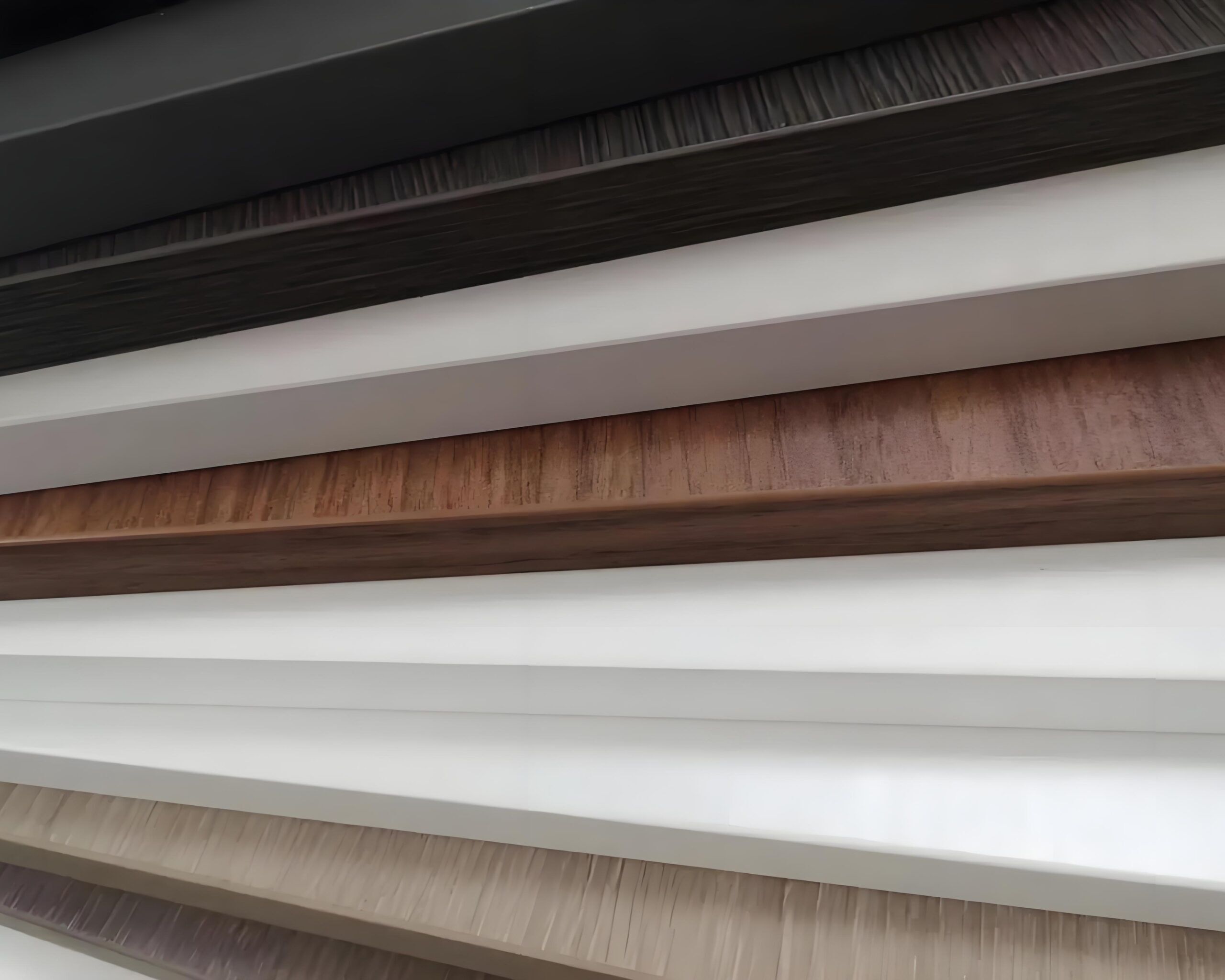

Materials suitable for edge banding

(PVC、ABS、Acrylic、Kraft paper、Non woven wood veneer、Solid wood veneer、Wood chips etc.)

Materials suitable for edge banding




Application notes

  1. It is recommended that PVC and PP films need to be back-coated.
  2.  It is recommended to use the ambient temperature above 20℃. If it is below 10℃, it is recommended to add external heating equipment.
  3.  The glue outlet needs to be sealed when production is stopped. If the machine is shut down for more than 1 week, it is recommended to clean the glue supply equipment.
  4. It is not recommended to mix it with other adhesives.
  5. The curing speed after use is related to the ambient temperature and humidity,high temperature and humidity will cure quickly.
  6. Unused adhesive must not come into contact with air or water vapor.
  7.  The surface of the board should be clean, flat, smooth and not warped.
  8. Machine gluing (board gluing or PVC film or other materials skin gluing can be used).
  9. After bonding, the stacked boards should be placed flat for a period of time (more than 12-24 hours in summer; more than 24-48 hours in winter) before entering the next processing step.




PUR edge banding hot melt adhesive FAQs

Q1. Why does the edge banding immediately fall off the board after the edge banding process is completed?

A1. a. The edge band is too thick and does not match the selected glue. b. The amount of glue applied is too low. c. The selected glue development time is too long. d. The edge banding speed is too fast and the initial bonding strength of the glue is poor. e. The melt temperature is set too low. f. The pressure of the pressure wheel is insufficient.

Q2. Why does the edge banding fall off the board when it is being processed in the next step?

A2. a. The time of standing in the natural environment is too short. b. The amount of glue applied is too low. c. The temperature and humidity of the environment are too low, resulting in the glue not being able to solidify. d. The selected glue is not compatible with the bonding material.

Q3. When replacing a new bucket of glue suction cup, do I need to clean the glue suction cup?

A3. If it is used continuously, it does not need to be cleaned. However, if it is used for the first time, the glue suction cup and straw need to be cleaned before use.

Q4. Can PUR edge-banding hot-melt adhesive be used all year round?

A4. Yes, Blue Rhino’s universal version of PUR hot melt adhesive can be used at 10-35°C (excluding special weather temperatures). However, it is recommended to use fast-curing types in summer and slow-curing types in winter.




Why choose our PUR edge banding hot melt adhesive

1. With 20 years of experience in adhesive research and development, our technical engineers have a thorough understanding of bonding substrates and gluing processes, greatly improving your production efficiency.

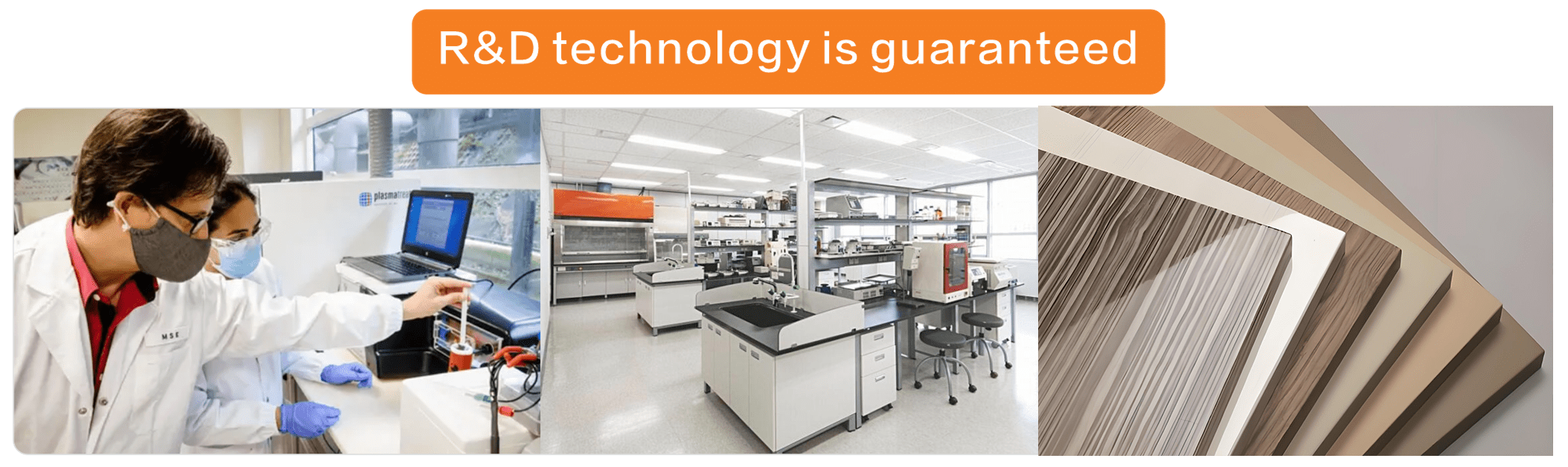

PUR hot melt adhesive laboratory for edge banding



2. In order to ensure the stable quality of the adhesive, all raw materials used come from international chemical giants, such as: LG Chem, Celanese, Dow Chemical, BASF, Sinopec



3. 18 fully automatic intelligent glue production lines, with an annual output of more than 50,000 tons, and sufficient inventory to ensure that goods reach customers on time.

PUR hot melt adhesive production workshop



4. Our adhesives have SGS, VOC, ROHS, ISO9001 and other test reports to ensure that the glue is safe and environmentally friendly.



5. We have many years of experience in international logistics and transportation, and are familiar with sea shipping, land transportation, air transportation and other methods, so you don’t have to worry about glue transportation.

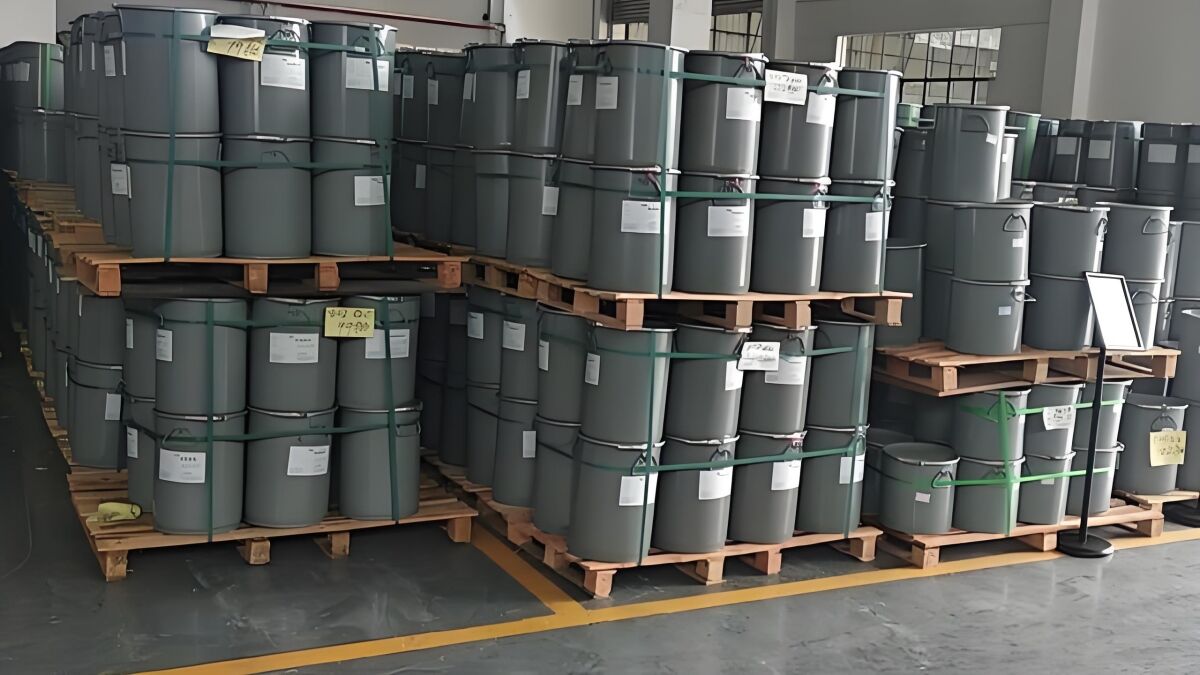

PUR hot melt adhesive transportation
